Schedules

Scheduling Device Control​

Users can schedule device control by selecting specific days and times for automated actions. For example: "Turn ON the light at 6 PM on Monday, Tuesday, and Friday" or "Turn OFF all devices at midnight daily".

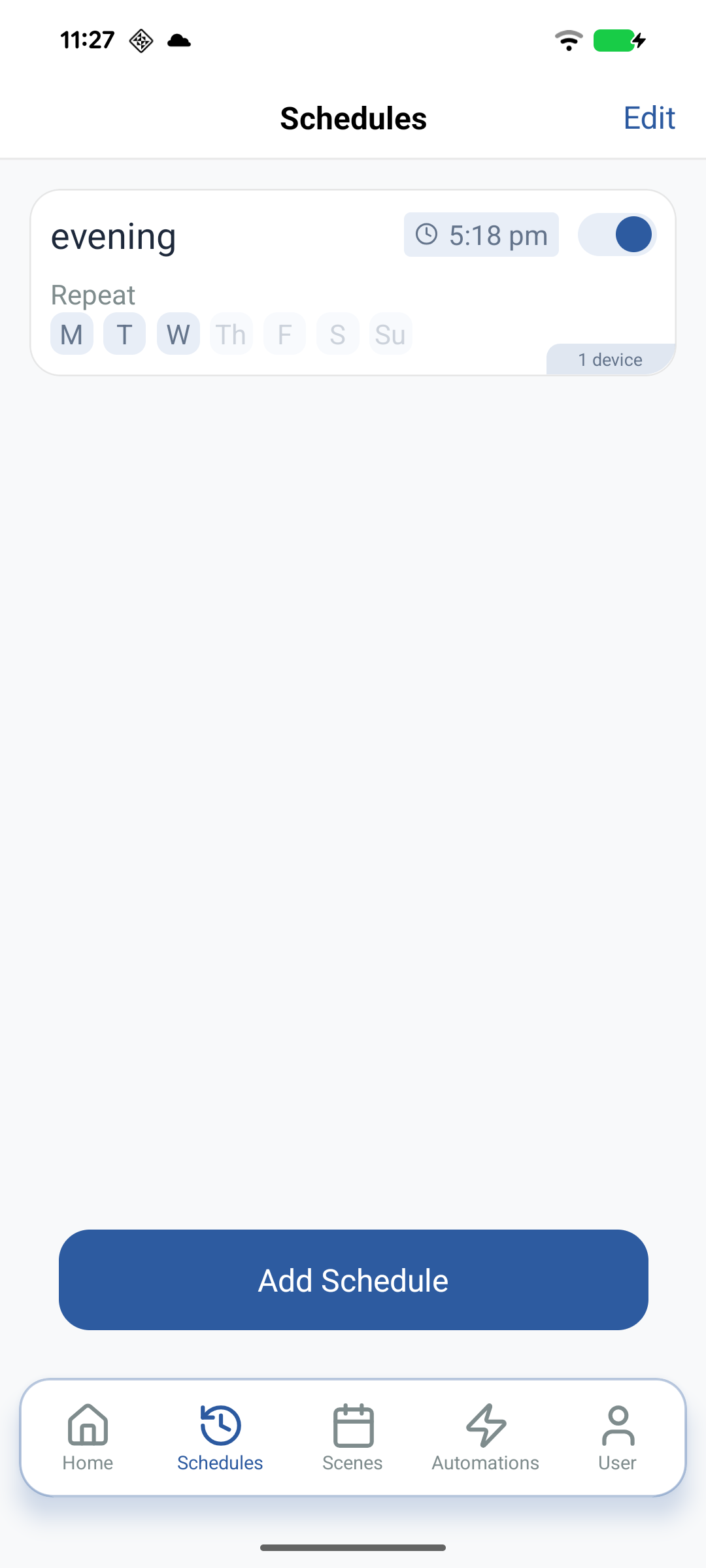

View Schedules​

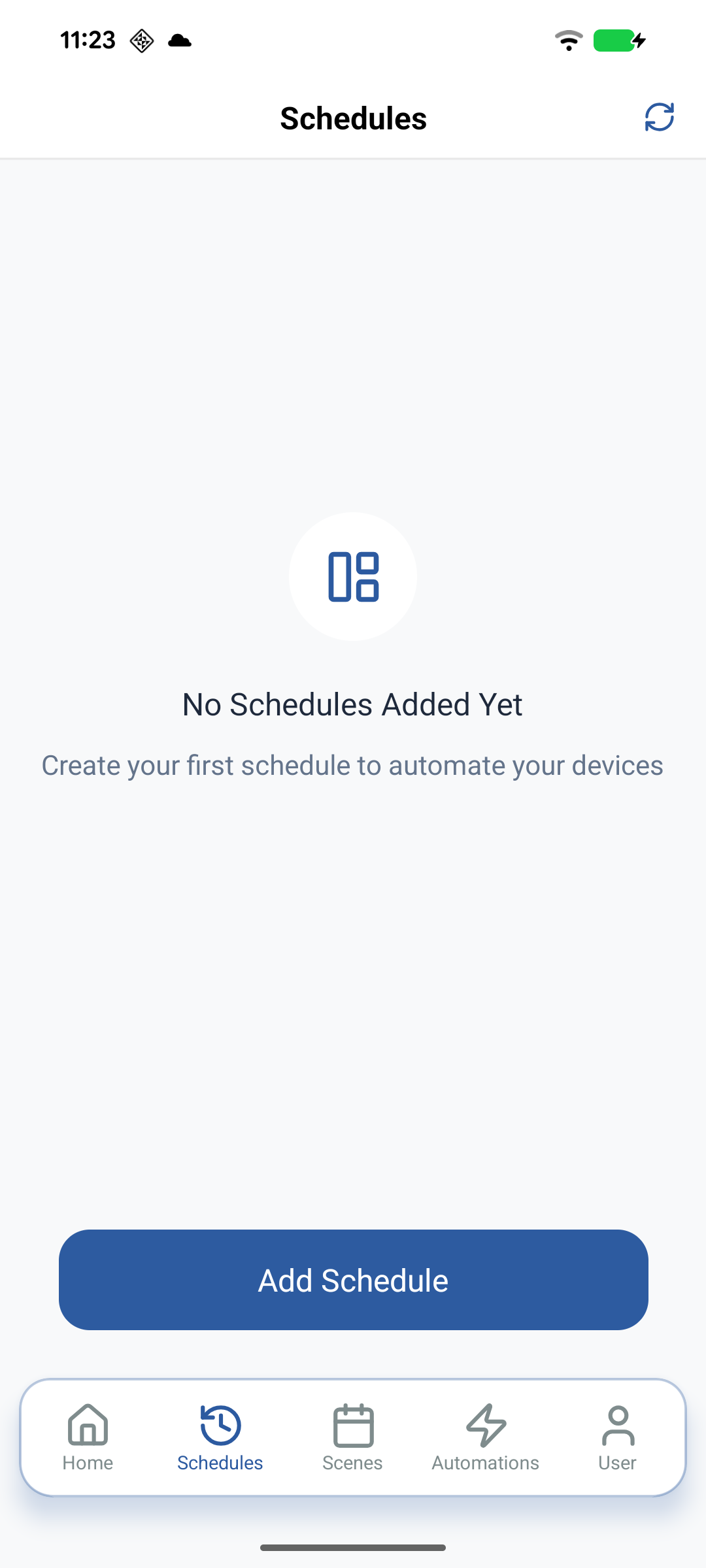

  1. Access Schedules - Tap the "Schedules" tab in the bottom navigation bar. All created schedules are displayed here.
  2. Schedule Information - Each schedule card shows:
    • Schedule name
    • Time (in 12-hour format with AM/PM)
    • Repeat days (M, T, W, Th, F, S, Su or "Once" for one-time schedules)
    • Device count
    • Enable/disable toggle switch

Create New Schedule​

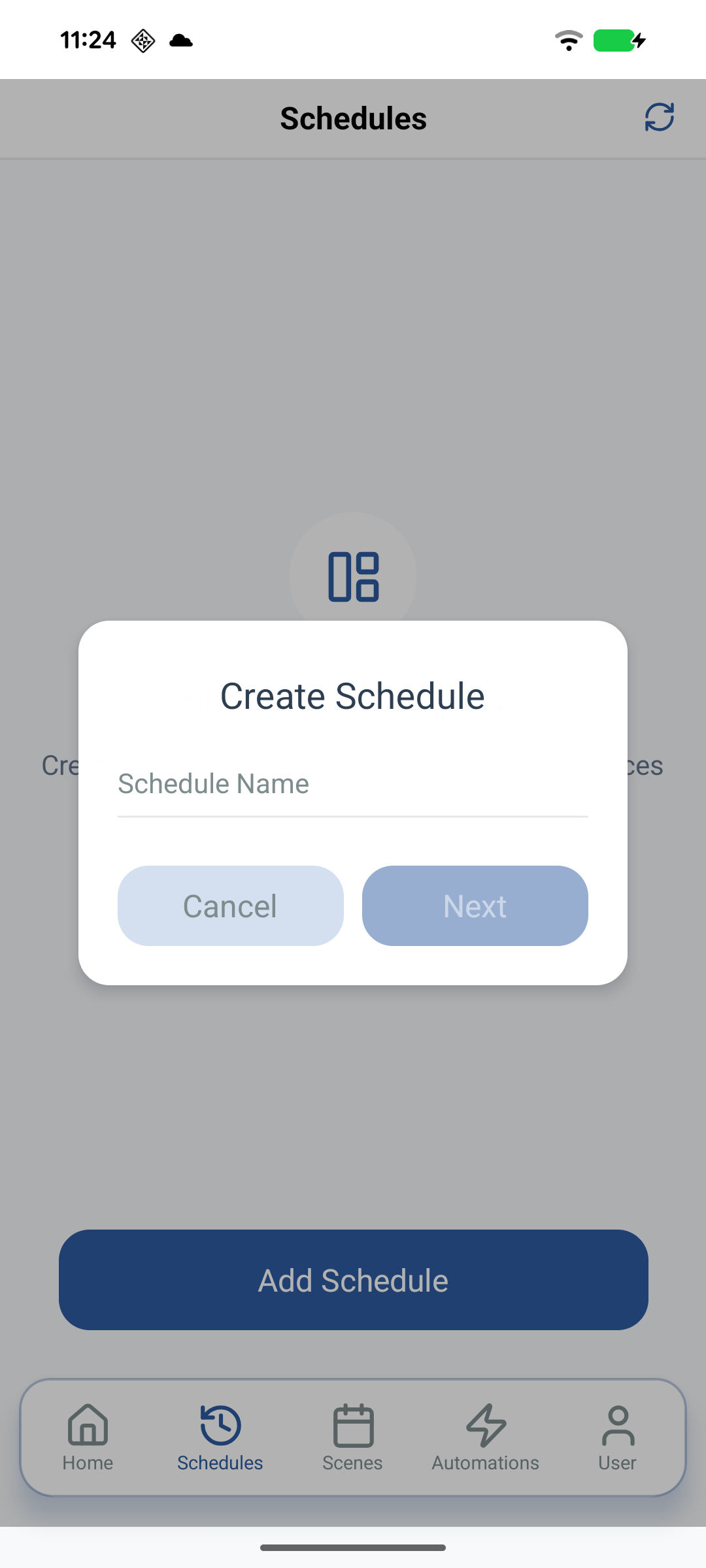

  1. Start Creation - On the Schedules page, tap the "+" button in the upper right corner. A dialog appears asking for the schedule name.
  2. Enter Name - Enter a name for your schedule (e.g., "Morning Lights", "Evening Routine") and tap "Confirm".

Select Devices and Actions​

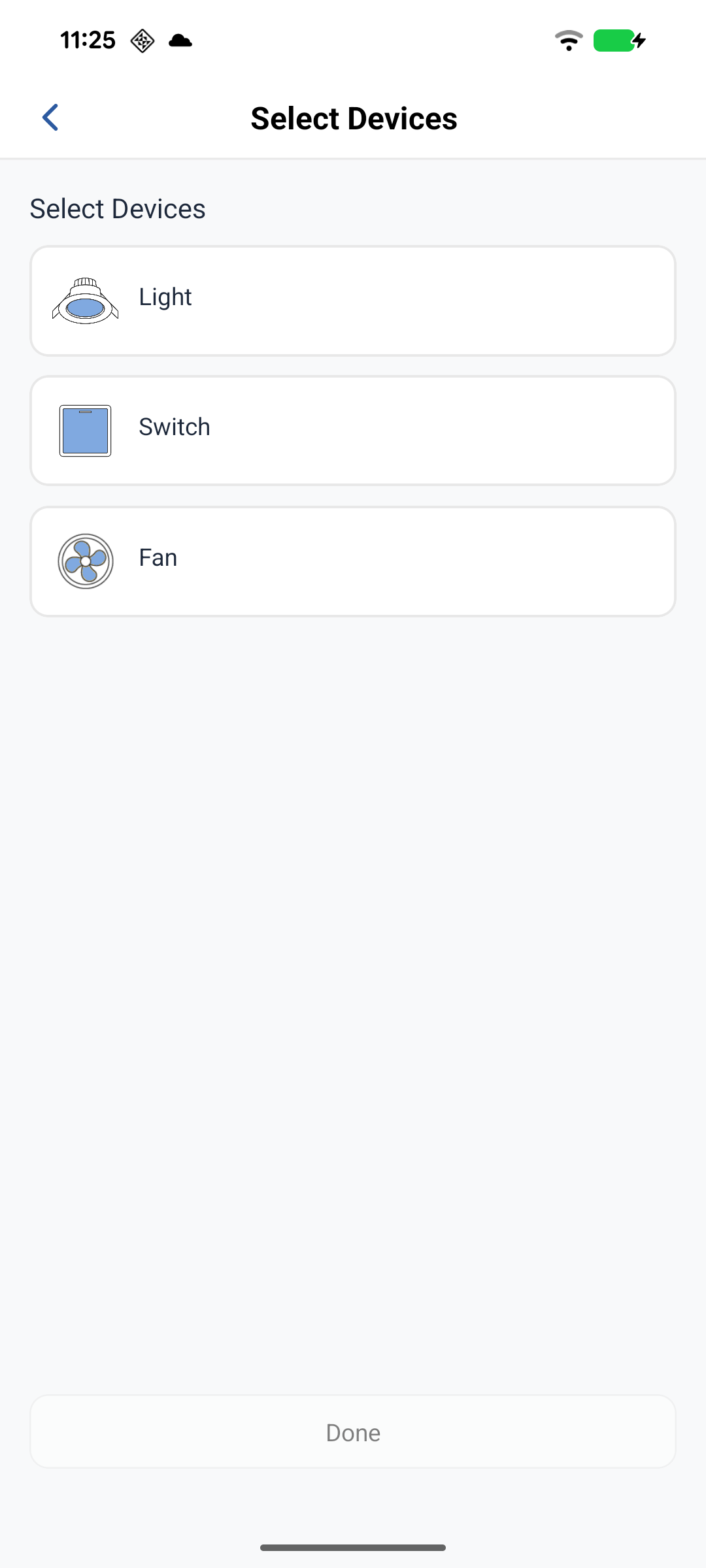

  1. Add Devices - On the Create Schedule page, tap the "+" button in the Actions section to select devices.
  2. Choose Devices - Select one or more devices from the available device list. Only online devices from your current home can be selected.

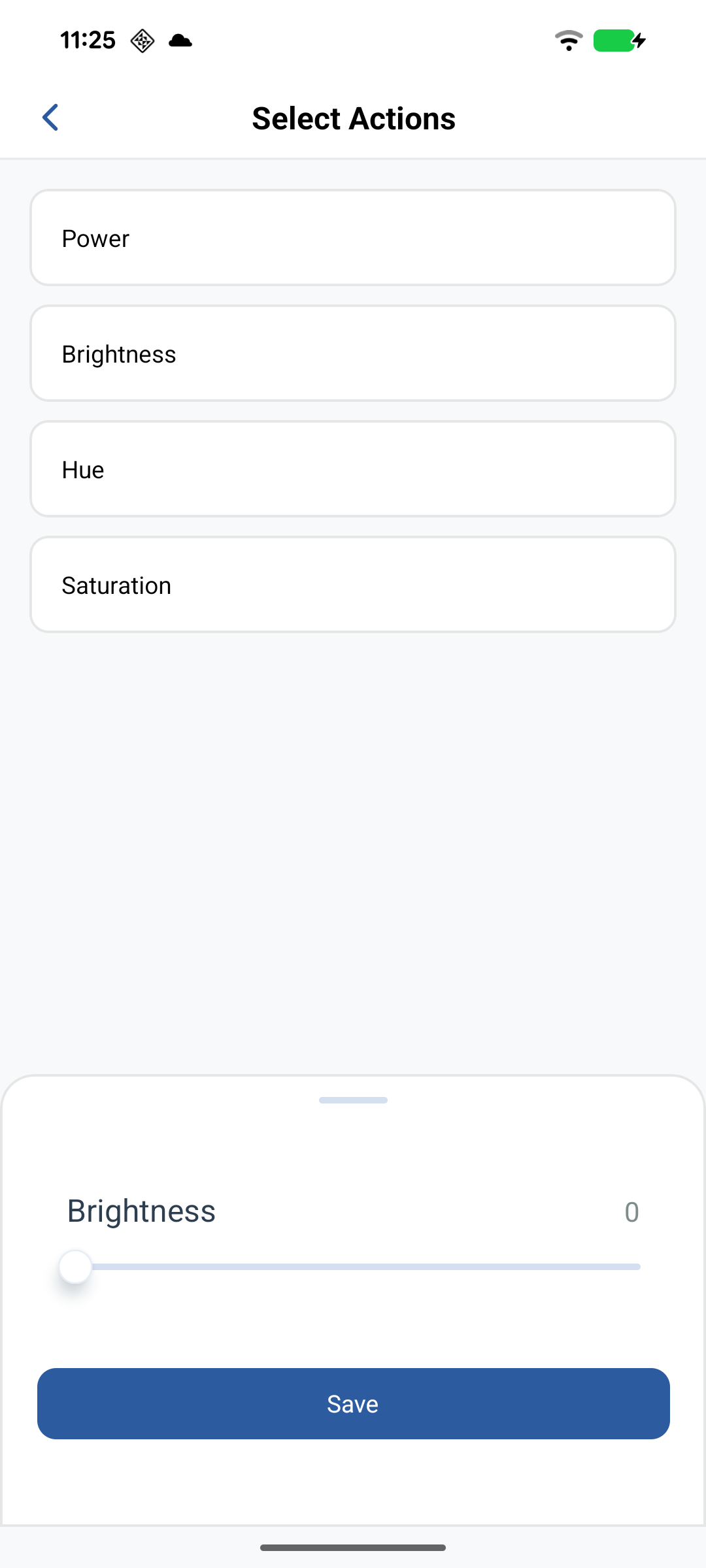

  3. Configure Actions - Tap on each selected device to configure the action parameters:
    • Power: Set to On or Off
    • Brightness: Set specific brightness level (for lights)
    • Color Temperature: Adjust warm/cool white (for compatible lights)
    • Color: Set hue value (for color lights)
    • Saturation: Set color intensity (for color lights)
    • Other device-specific parameters (e.g., fan speed, thermostat temperature)

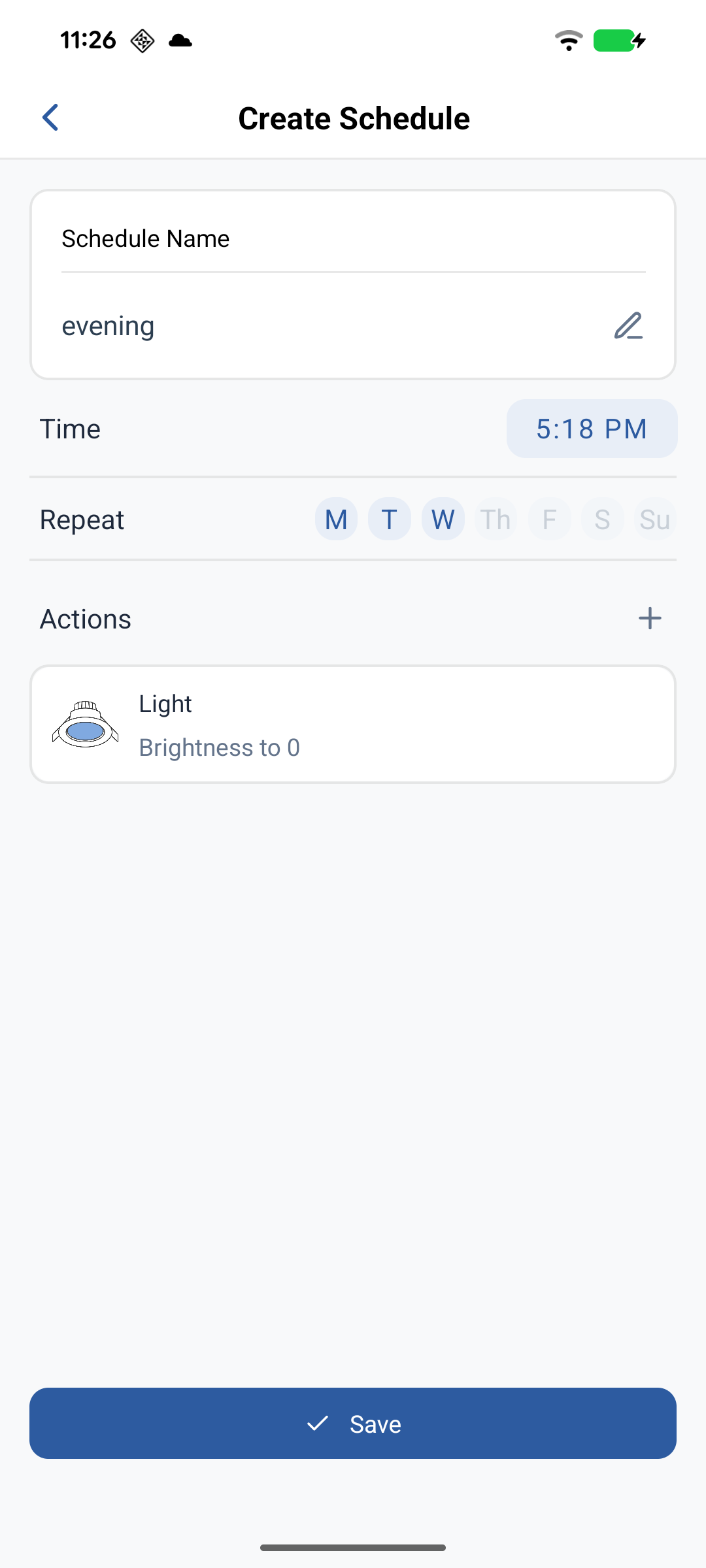

Set Schedule Time and Repeat​

  1. Set Time - Tap on the time selector to choose when the schedule should run. Select the hour and minutes in 12-hour format with AM/PM.
  2. Set Repeat Days - Tap on the day buttons to select which days the schedule repeats:
    • M (Monday), T (Tuesday), W (Wednesday), Th (Thursday), F (Friday), S (Saturday), Su (Sunday)
    • Multiple days can be selected for recurring schedules
    • If no days are selected, the schedule runs only once
  3. Save Schedule - Tap "Save" to create the schedule. It appears in your Schedules list and runs automatically at the configured times.

Manage Schedules​

Enable or Disable Schedules​

  1. Toggle Schedule - On the Schedules page, use the switch on any schedule card to enable or disable it.
  2. Enabled (Green) - Schedule will run automatically at the configured times.
  3. Disabled (Gray) - Schedule is paused and won't execute until re-enabled.

Edit Schedules​

  1. Enter Edit Mode - Tap the "Edit" button in the upper right corner of the Schedules page.
  2. Select Schedule - Tap on the schedule card you want to edit.
  3. Modify Schedule - Update the schedule name, time, repeat days, or device actions as needed.
  4. Save Changes - Tap "Update" to save your changes.

Delete Schedules​

  1. Enter Edit Mode - Tap the "Edit" button in the upper right corner of the Schedules page.
  2. Delete Schedule - Tap the trash icon on the schedule card you want to remove.
  3. Confirm Deletion - The schedule is removed from your list and will no longer execute.

Schedule Examples​

Morning Routine:

  • Name: "Good Morning"
  • Time: 7:00 AM
  • Repeat: M, T, W, Th, F (Weekdays)
  • Actions: Turn on bedroom light at 50% brightness, turn on coffee maker

Evening Lights:

  • Name: "Evening Ambiance"
  • Time: 6:00 PM
  • Repeat: M, T, W, Th, F, S, Su (Daily)
  • Actions: Turn on living room lights, set color to warm white

Night Mode:

  • Name: "Bedtime"
  • Time: 10:00 PM
  • Repeat: M, T, W, Th, F, S, Su (Daily)
  • Actions: Turn off all lights, turn on night light at 10% brightness
